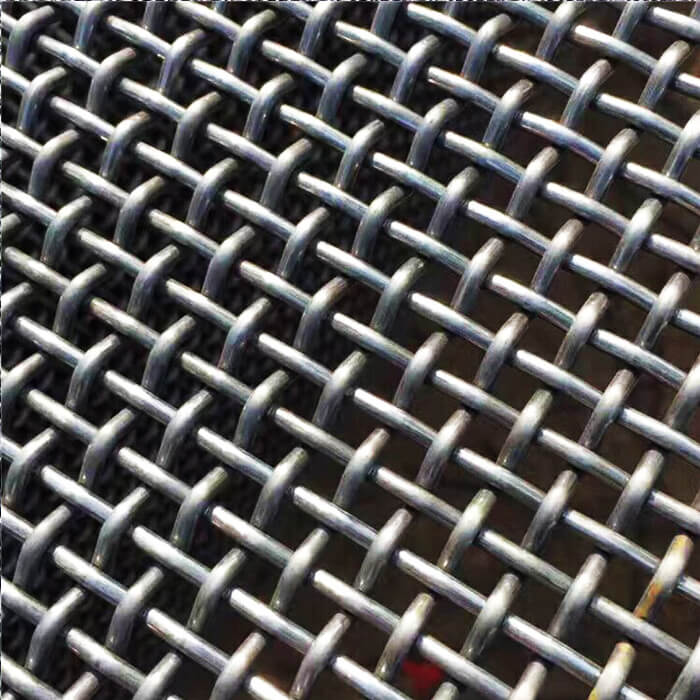

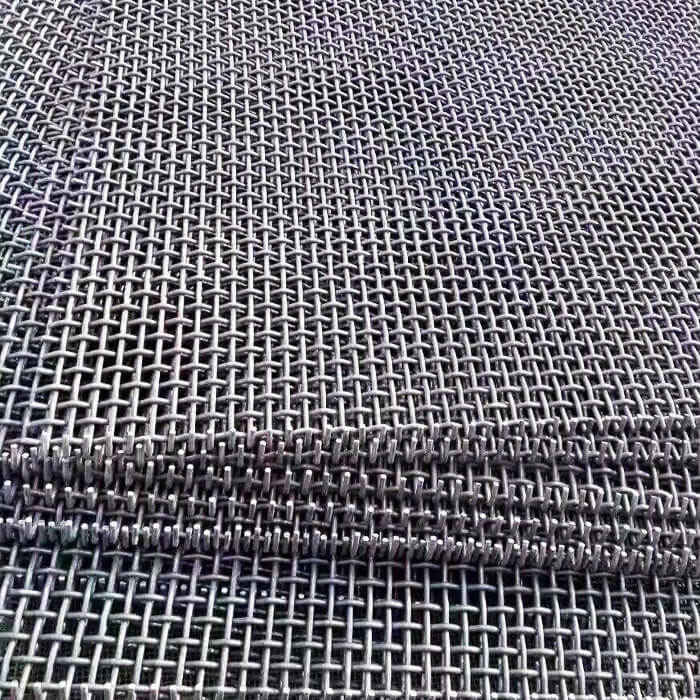

65MN Crimped Wire Mesh for Mining Screens

65MN Crimped Wire Mesh for Mining Screens

65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Comparing with carbon steel,45#,50#,55#,60#,70#,72A material grade, 65mn Material have the highest Manganese content and high carbon, which let is have High Wear resistance and Tensile strength.

  • Best Quality
  • High efficiency
  • Customize
Inquiryt

Description

65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Comparing with carbon steel,45#,50#,55#,60#,70#,72A material grade, 65mn Material have the highest Manganese content and high carbon, which let is have High Wear resistance and Tensile strength.


Stainless steel is also fine material, but price is too expensive for batch quantity uses. So that 65mn crimped wire mesh is a great screens for mining, quarrying, vibrating industry.



65MN Material Chemical Composition
Material C Si Mn Cr Ni Cu
65Mn steel
Example: 6.5mm
0.62-0.70 0.17-0.37 0.90-1.20 ≤0.25 ≤0.30 ≤0.25
0.66 0.25 0.98 0.04 0.01 0.03

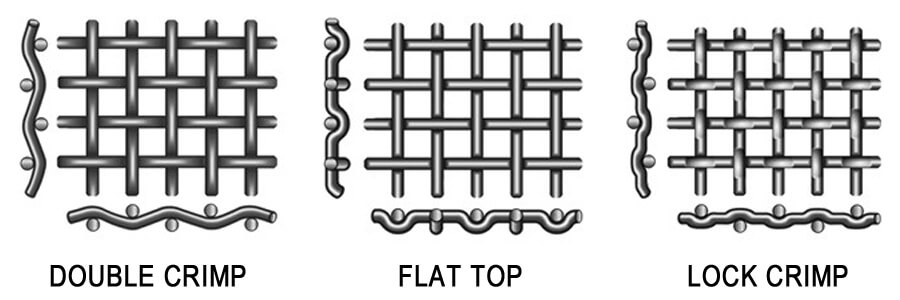

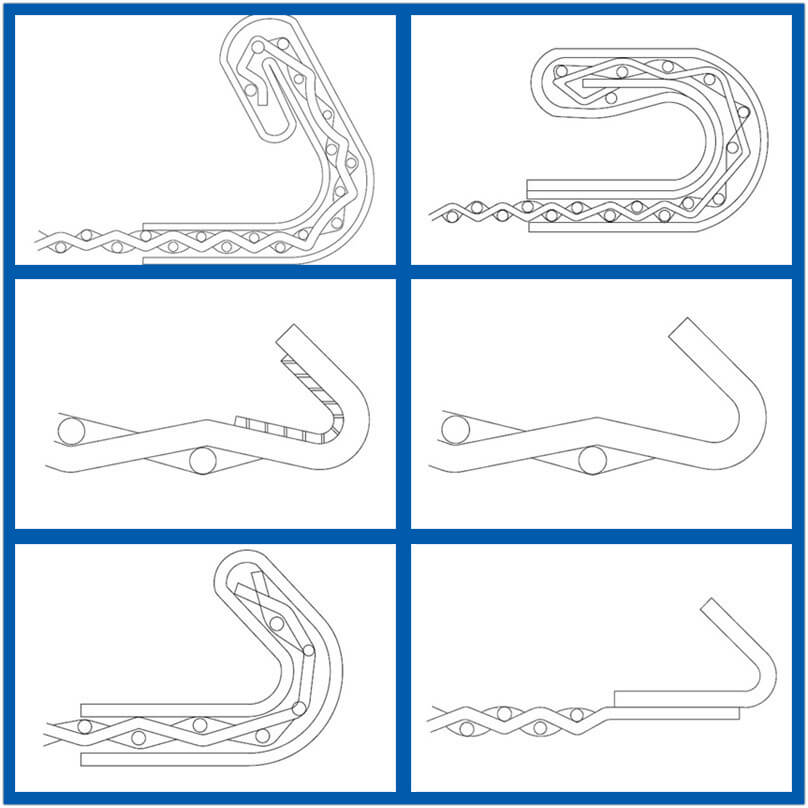

Weaving Types And Edge Types


  Weaving Types And Edge Types


  Weaving Types And Edge Types


Specification Data:

Material: 65Mn Steel
Wire diameter: 0.5-12.7mm
Weaving type: Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommend for Mining Screen Usage)
Aperture/opening: 1.0mm-150mm
Size: in sheet or in roll, width up to 6meter, length up to 100meters.
General sheet size: 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.
Surface finishing: Mill finish, Anti-rust oil spraying, PVC coating


65mn Crimped Wire Mesh
